INTENDED USE OF "S-8kom-Be Inert" Unguided Aviation Rocket
- Unguided aviation rocket S-8KOM-BE INERT is from the class "air to surface" and is used for training the personnel of different Air Force units to use S-8KOM, S-8KOM-BE and S-8KOM-MBE by firing at firing range targets by airplanes and helicopters.
INTENDED USE OF "S-8kom-Be Inert" Unguided Aviation Rocket
- Unguided aviation rocket S-8KOM-BE INERT is from the class "air to surface" and is used for training the personnel of different Air Force units to use S-8KOM, S-8KOM-BE and S-8KOM-MBE by firing at firing range targets by airplanes and helicopters.
DESIGN OF THE "S-8 KOM-BE INERT" rocket
The S-8KOM-BE INERT unguided air missile consists of an inert warhead and a rocket engine. The rocket motor is composed of solid ballistic fuel and in the temperature range from 213 K to 333 K has the following characteristics: total thrust impulses - from 5394 N.s to 5984 N.s; operating time - from 0.45 s to 1.3 s. A modern production method of shaped aluminum tubes was used for the construction of the housing.
CALIBER, mm
80
ROCKET <BR> LENGTH, mm
1542 max
ROCKET <BR> WEIGHT,kg
11,3
WEIGHT OF <br>THE WARHEAD, kg
3,6
MAXIMAL <BR>VELOCITY, m/s
600
FIRING<BR> DISTANCE, m
1300:4000
TEMPERATURE <BR> RANGE OF COMBAT <BR>USAGE, <BR> K(°C)<BR><BR>
FROM 213 TO 333 <BR> (-60 до+60)
PROBABLE <BR>DEVIATION OF <BR>TECHNICAL <BR>DISPERSION <BR>OF MISSILES <BR>FIRED FROM <BR>AIRCRAFT, MRAD
3
PROBABLE <BR>TECHNICAL <BR>DISPERSION <BR>DEVIATION <BR>OF MISSILES <BR> FIRED FROM <BR>HELICOPTER, <BR>MRAD
8
CALIBER, mm
ROCKET LENGTH, mm
ROCKET WEIGHT, kg
WEIGHT OF THE WARHEAD, kg
MAXIMUM VELOCITY, m/s
FIRING DISTANCE, m/s
TEMPERATURE RANGE OF COMBAT USAGE, K(°C)<BR><BR>
PROBABLE DEVIATION OF TECHNICAL DISPERSION <BR>OF THE ROCKETS IN THE PICTURE PLANE UPON FIRING, MRAD
PROBABLE TECHNICAL DISPERSION DEVIATION <BR>OF MISSILES FIRED FROM HELICOPTER, MRAD
80
1542 max
11,3
3,6
600
1300:4000
FROM 213 TO 333(-60+60))
3<BR><BR>
8

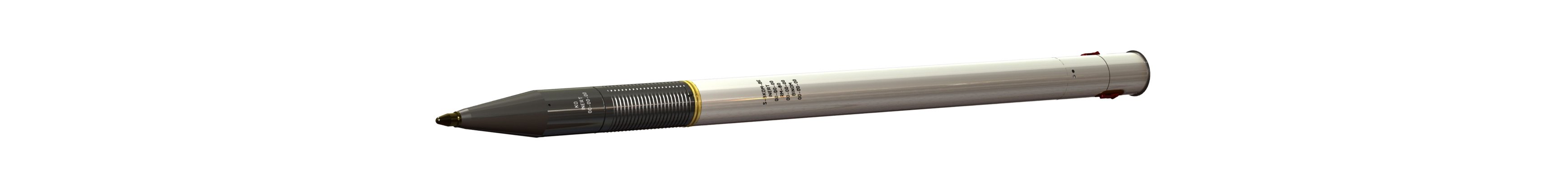

UNGUIDED
ROCKET "S-8KOM-BE INERT"
