PURPOSE OF "S-8DM-BE" Unguided Aviation Rocket
The s-8DM-BE unguided aviation missile is of the "air-to-surface" class and is designed to destroy:
- Non-armored ground targets (specialized machines, radar stations, aircraft and helicopters on the ground, warehouses for transport and transport materials, etc.).
- Enemy manpower stationed in trenches, ditches, pits, caves and other such shelters
PURPOSE OF "S-8DM-BE" Unguided Aviation Rocket
The S-8DM-BE unguided air-to-surface missile is designed to destroy:
- Non-armored ground targets (specialized machines, radar stations, aircraft and helicopters on the ground, warehouses for transport and transport materials, etc.).
- Enemy manpower stationed in trenches, ditches, pits, caves and other such shelters

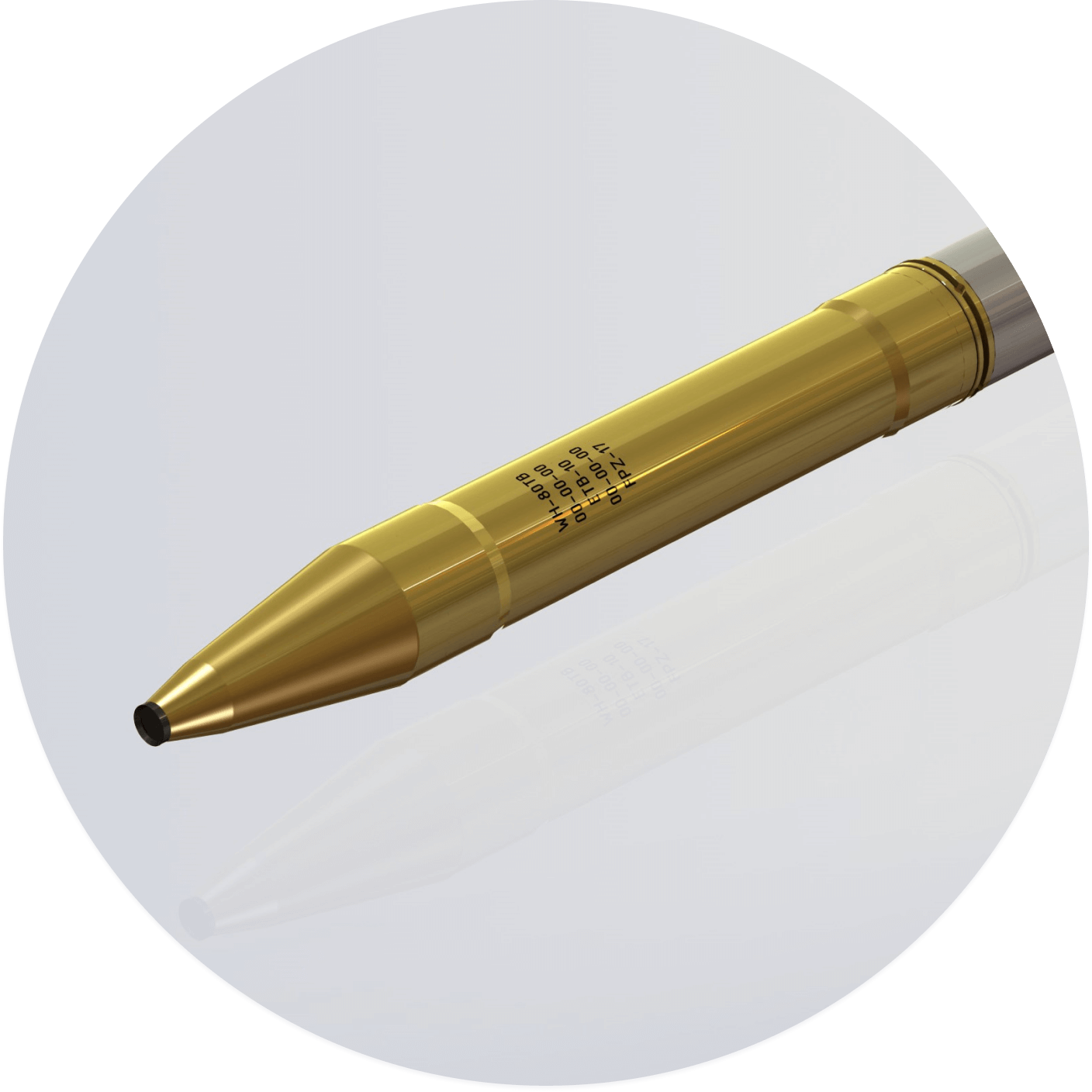

DEVICE OF THE S-8DM-BE ROCKET
Device The S-8DM-BE unguided aviation missile consists of a warhead, shelled with a solid volumetric detonating mixture, with a piezo-electric explosive device and a jet engine installed in it. The jet engine is a solid ballistic propellant and in the temperature range of 213 k to 333 k has the following characteristics: a total thrust impulse of 5394 N.s, to 5984 N.S; operating time from 0.45s to 1.3s. The warhead has a thermobaric action and upon detonation, a high-energy cloud is formed from the components of the bulk detonating mixture. In terms of high-explosive action, the explosion of the cloud is equivalent to the explosion of 5.5-6 kg of TNT. The detonator ensures safe operation during service handling of the missile and reliable action on impact and on any type of surface, even with ricochet angles of meeting the target.

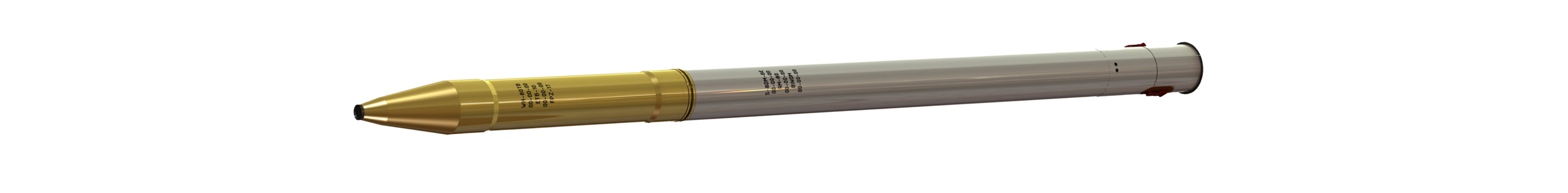

UNGUIDED AVIATION ROCKET "C-8DM-BE"
